892-18-022-10-004101

Preci-Dip
In Stock: 100

Can ship immediately

Pricing:
  • 1$2.03718
  • 400$1.8276

Quote It

Technical Details

  • Series:892
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:22
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.587" (14.91mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.805" (20.44mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


4-644695-8

CONN HEADER VERT 18POS 2.54MM

4-644695-8 Datasheet
  • 1: $2.03734
  • 500: $1.76392

67998-272HLF

CONN HEADER VERT 72POS 2.54MM

67998-272HLF Datasheet
  • 1: $2.03760
  • 100: $2.03760

95278-102B38LF

CONN HEADER SMD 38POS 2.54MM

95278-102B38LF Datasheet
  • 1: $2.03761
  • 180: $1.97822

0349126041

CONN HEADER SMD R/A 4POS 2MM

0349126041 Datasheet
  • 1: $2.03771
  • 750: $2.03771

71918-044LF

CONN HEADER VERT 44POS 2.54MM

71918-044LF Datasheet
  • 1: $2.03806
  • 360: $1.88458

77313-401-62LF

CONN HEADER VERT 62POS 2.54MM

77313-401-62LF Datasheet
  • 1: $2.03807
  • 300: $1.88457

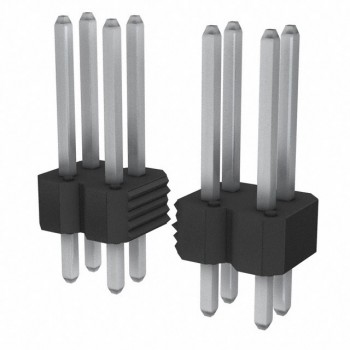

77313-422-58LF
