350-10-120-00-018101

Preci-Dip
In Stock: 159

Can ship immediately

Pricing:
  • 1$2.04768
  • 400$1.78853

Quote It

Technical Details

  • Series:350
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:20
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.169" (4.30mm)



  • Contact Length - Post:0.124" (3.15mm)
  • Overall Contact Length:0.480" (12.19mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


802-10-018-30-001101

CONN HEADER SMD 18POS 2.54MM

802-10-018-30-001101 Datasheet
  • 1: $2.04786
  • 350: $1.78871

GCC07DBCN

CONN HEADER R/A 14POS 2.54MM

GCC07DBCN Datasheet
  • 1: $2.04800
  • 100: $2.04800

77311-832-36LF

CONN HEADER VERT 36POS 2.54MM

77311-832-36LF Datasheet
  • 1: $2.04830
  • 100: $1.89400

68001-536HLF

CONN HEADER VERT 36POS 2.54MM

68001-536HLF Datasheet
  • 1: $2.04855
  • 200: $2.04855

890-18-025-10-003101

CONN HEADER VERT 25POS 2.54MM

890-18-025-10-003101 Datasheet
  • 1: $2.04856
  • 250: $1.83784

GRPB212MWCN-RC

CONN HEADER R/A 42POS 1.27MM

GRPB212MWCN-RC Datasheet
  • 1: $2.04885
  • 1000: $2.04885

GRPB421VWCN-RC

CONN HEADER R/A 42POS 1.27MM

GRPB421VWCN-RC Datasheet
  • 1: $2.04885
  • 1000: $2.04885

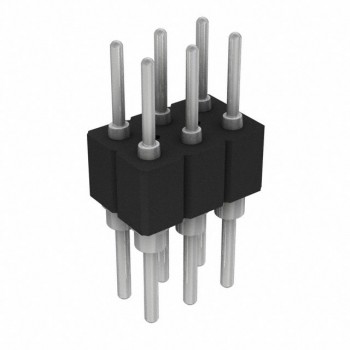

451-10-206-00-016101
