In Stock: 100

Can ship immediately

Pricing:
  • 1$2.11607

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:34
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.146" (3.70mm)



  • Contact Length - Post:0.110" (2.80mm)
  • Overall Contact Length:-
  • Insulation Height:0.238" (6.05mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Pick and Place
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


3-2842307-4

34P,2MM,SHRD HDR,DRVT,0.38AU,TR

  • 1: $2.11607

800-10-020-40-001101

CONN HEADER SMD R/A 20POS 2.54MM

800-10-020-40-001101 Datasheet
  • 1: $2.11610
  • 400: $1.84828

1-2232980-3

CONN HEADER SMD 3POS 2.54MM

1-2232980-3 Datasheet
  • 1: $2.11616
  • 1125: $2.04592

77317-403-58LF

CONN HEADER R/A 58POS 2.54MM

77317-403-58LF Datasheet
  • 1: $2.11627
  • 300: $1.95683

4-647051-1

CONN HEADER R/A 11POS 2.54MM

4-647051-1 Datasheet
  • 1: $2.11636
  • 1000: $1.83235

0741050032

CONN HEADER SMD R/A 9POS 2.54MM

0741050032 Datasheet
  • 1: $2.11644
  • 630: $2.05598

0440671601

CONN HEADER VERT 16POS 3MM

0440671601 Datasheet
  • 1: $2.11645
  • 792: $1.87457

67996-168HLF

CONN HEADER VERT 68POS 2.54MM

67996-168HLF Datasheet
  • 1: $2.11660
  • 100: $2.11660

800-10-020-20-001101

CONN HEADER R/A 20POS 2.54MM

800-10-020-20-001101 Datasheet
  • 1: $2.11680
  • 300: $1.84880

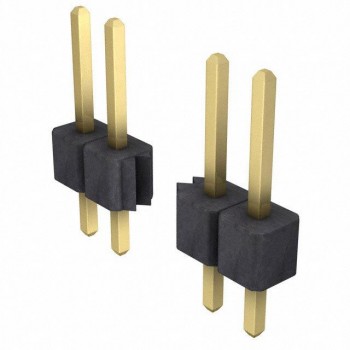

PGC36SAAN
