0022283317

Woodhead - Molex
In Stock: 157

Can ship immediately

Pricing:
  • 1$2.28774
  • 1,500$2.28774

Quote It

Technical Details

  • Series:KK254, 42225
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:31
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.295" (7.49mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.540" (13.72mm)
  • Insulation Height:0.337" (8.56mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:-
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


20021521-00010C8LF

CONN HEADER SMD 10POS 1.27MM

20021521-00010C8LF Datasheet
  • 1: $2.28781
  • 1400: $2.28781

GBC04DGAN-M40

CONN HEADER SMD R/A 8POS 2.54MM

GBC04DGAN-M40 Datasheet
  • 1: $2.28800
  • 100: $2.28800

147324-5

CONN HEADER SMD R/A 6POS 2.54MM

147324-5 Datasheet
  • 1: $2.28814
  • 900: $2.01954

1054311403

NANO-FIT HDR SMT VT SGL 3CKT 30A

  • 1: $2.28830

802-80-032-30-001101

CONN HEADER SMD 32POS 2.54MM

802-80-032-30-001101 Datasheet
  • 1: $2.28847
  • 288: $2.10740

HIF3E-16PA-2.54DSA(71)

CONN HEADER VERT 16POS 2.54MM

HIF3E-16PA-2.54DSA(71) Datasheet
  • 1: $2.28900

AWH 34A-0202-T

CONN HEADER R/A 34POS 2.54MM

AWH 34A-0202-T Datasheet
  • 1: $2.28900
  • 80: $2.28900

850-10-022-20-001101

CONN HEADER R/A 22POS 1.27MM

850-10-022-20-001101 Datasheet
  • 1: $2.28922
  • 192: $2.28922

5-1375549-4

CONN HEADER SMD 5POS 2.54MM

5-1375549-4 Datasheet
  • 1: $2.28973
  • 900: $2.15830

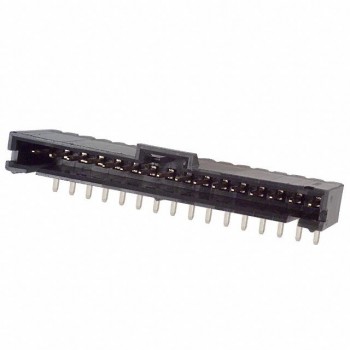

1-103906-5
