In Stock: 190

Can ship immediately

Pricing:
  • 1$2.43899
  • 1,000$2.11166

Quote It

Technical Details

  • Series:MTA-100
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:-



  • Contact Length - Post:0.140" (3.56mm)
  • Overall Contact Length:-
  • Insulation Height:0.250" (6.35mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA46), Nylon 4/6
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC

Related Products


0026655100

CONN HEADER R/A 10POS 3.96MM

0026655100 Datasheet
  • 1: $2.43905
  • 1000: $2.43905

GRPB252MWCN-RC

CONN HEADER R/A 50POS 1.27MM

GRPB252MWCN-RC Datasheet
  • 1: $2.43905
  • 1000: $2.43905

1718134008

CONN HEADER VERT 8POS 3.96MM

1718134008 Datasheet
  • 1: $2.43916
  • 500: $2.36946

1718133010

CONN HEADER VERT 10POS 3.96MM

1718133010 Datasheet
  • 1: $2.43970
  • 200: $2.43970

4-103185-0-25

CONN HEADER VERT 25POS 2.54MM

4-103185-0-25 Datasheet
  • 1: $2.44000
  • 10: $2.21769
  • 25: $2.08213

4-103240-0-12

CONN HEADER VERT 24POS 2.54MM

4-103240-0-12 Datasheet
  • 1: $2.44000
  • 10: $2.21435
  • 25: $2.07897

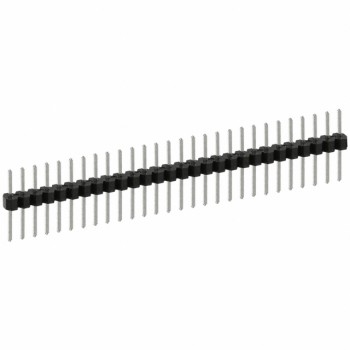

PEC28SACN

CONN HEADER VERT 28POS 2.54MM

PEC28SACN Datasheet
  • 1: $2.44000
  • 10: $2.21800
  • 25: $2.08240

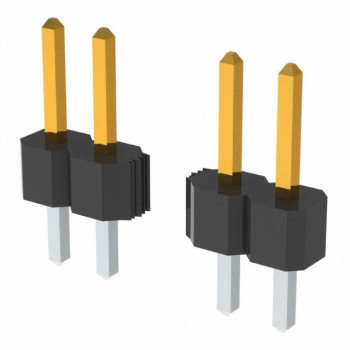

PBC33SAAN

CONN HEADER VERT 33POS 2.54MM

PBC33SAAN Datasheet
  • 1: $2.44000
  • 10: $2.21000
  • 25: $2.07480

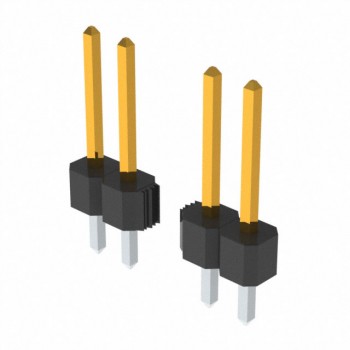

PBC33SFAN

CONN HEADER VERT 33POS 2.54MM

PBC33SFAN Datasheet
  • 1: $2.44000
  • 10: $2.21000
  • 25: $2.07480

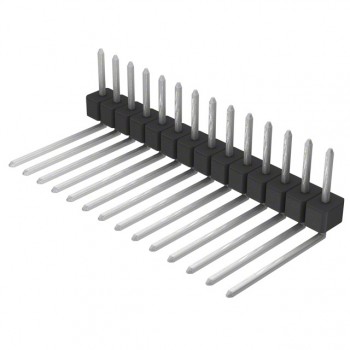

PEC14SBEN
