0194280039

Woodhead - Molex
In Stock: 118

Can ship immediately

Pricing:
  • 1$2.4435
  • 2,450$2.4435

Quote It

Technical Details

  • Series:MX150L 19428
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Blade
  • Pitch - Mating:0.230" (5.84mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Panel Mount, Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:1.562" (39.66mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:Mounting Flange
  • Operating Temperature:-
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0877593650

CONN HEADER SMD 36POS 2MM

  • 1: $2.44352

0740950016

CONN HEADER VERT 16POS 2.54MM

0740950016 Datasheet
  • 1: $2.44369
  • 1152: $2.44369

852-10-020-20-002101

CONN HEADER R/A 20POS 1.27MM

852-10-020-20-002101 Datasheet
  • 1: $2.44375
  • 224: $2.44375

0010897203

CONN HEADER VERT 20POS 2.54MM

0010897203 Datasheet
  • 1: $2.44384
  • 2000: $2.44384

66429-367LF

QKE HDR

  • 1: $2.44435

890-18-023-10-004101

CONN HEADER VERT 23POS 2.54MM

890-18-023-10-004101 Datasheet
  • 1: $2.44442
  • 240: $2.19313

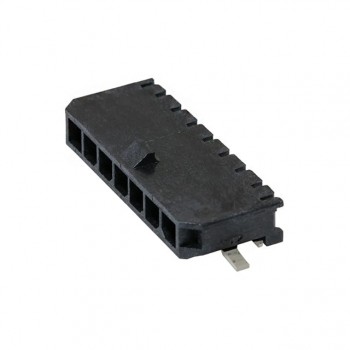

0436500714

CONN HEADER SMD R/A 7POS 3MM

0436500714 Datasheet
  • 1: $2.44454
  • 2240: $2.44454

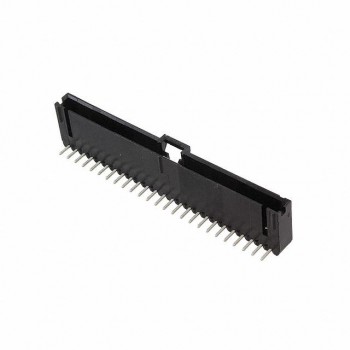

2-103635-4
