In Stock: 102

Can ship immediately

Pricing:
  • 1$2.4482

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:32
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.146" (3.70mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.252" (6.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


860-80-038-10-001101

CONN HEADER VERT 38POS 1MM

  • 1: $2.44847
  • 130: $2.44847

450-10-220-00-018101

CONN HEADER VERT 20POS 2.54MM

450-10-220-00-018101 Datasheet
  • 1: $2.44858
  • 240: $2.13879

802-80-038-10-002101

CONN HEADER VERT 38POS 2.54MM

802-80-038-10-002101 Datasheet
  • 1: $2.44912
  • 273: $2.25535

3-826648-6

CONN HEADER VERT 36POS 2.54MM

3-826648-6 Datasheet
  • 1: $2.44958
  • 700: $2.44958

3-826631-6

CONN HEADER R/A 36POS 2.54MM

3-826631-6 Datasheet
  • 1: $2.44960
  • 3600: $2.37826

892-80-046-10-004101

CONN HEADER VERT 46POS 2.54MM

892-80-046-10-004101 Datasheet
  • 1: $2.44978
  • 230: $2.25613

0422271063

CONN HEADER VERT 28POS 2.54MM

0422271063 Datasheet
  • 1: $2.44986
  • 1500: $2.44986

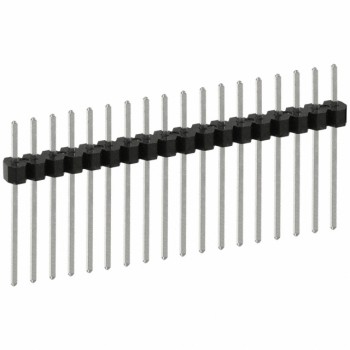

PEC18SAHN

CONN HEADER VERT 18POS 2.54MM

PEC18SAHN Datasheet
  • 1: $2.45000
  • 10: $2.22000
  • 25: $2.08400

PEC29DAAN

CONN HEADER VERT 58POS 2.54MM

PEC29DAAN Datasheet
  • 1: $2.45000
  • 10: $2.22600
  • 25: $2.09000

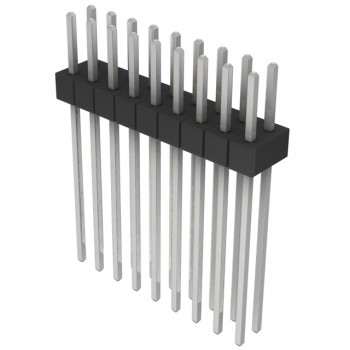

PEC09DAGN
