894-80-057-10-002101

Preci-Dip
In Stock: 172

Can ship immediately

Pricing:
  • 1$2.458
  • 230$2.26361

Quote It

Technical Details

  • Series:894
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:57
  • Number of Rows:3
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.276" (7.00mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.494" (12.54mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


894-80-069-10-001101

CONN HEADER VERT 69POS 2.54MM

894-80-069-10-001101 Datasheet
  • 1: $2.45800
  • 230: $2.26361

4-2842270-6

46P,2MM,SHRD HDR,DRRT,0.1AU,TR

  • 1: $2.45817

SBH51-LPSE-D09-SP-BK

CONN HEADER SMD 18POS 1MM

SBH51-LPSE-D09-SP-BK Datasheet
  • 1: $2.45897
  • 58: $2.45897

892-70-048-20-002101

CONN HEADER R/A 48POS 2.54MM

892-70-048-20-002101 Datasheet
  • 1: $2.45978
  • 230: $2.23009

1719771206

SL LCP RTA HDR ASY PEG SMT 30AU

  • 1: $2.45993

929710-10-10

CONN HEADER VERT 20POS 2.54MM

929710-10-10 Datasheet
  • 1: $2.46000
  • 10: $2.22800
  • 25: $2.09160

929836-03-19-RK

CONN HEADER VERT 38POS 2.54MM

929836-03-19-RK Datasheet
  • 1: $2.46000
  • 10: $2.23400
  • 25: $2.09760

4-103741-0-37

CONN HEADER VERT 37POS 2.54MM

4-103741-0-37 Datasheet
  • 1: $2.46000
  • 10: $2.23676
  • 25: $2.09934

4-103328-0-22

CONN HEADER VERT 44POS 2.54MM

4-103328-0-22 Datasheet
  • 1: $2.46000
  • 10: $2.23126
  • 25: $2.09488

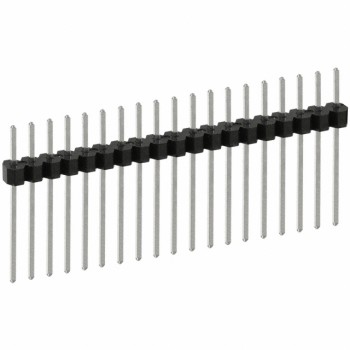

PEC19SAGN
