In Stock: 150

Can ship immediately

Pricing:
  • 1$2.46936

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:28
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.146" (3.70mm)



  • Contact Length - Post:0.098" (2.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.240" (6.10mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


0015911424

CONN HEADER SMD 42POS 2.54MM

0015911424 Datasheet
  • 1: $2.46946
  • 2160: $2.46946

2-640452-4

CONN HEADER VERT 24POS 2.54MM

2-640452-4 Datasheet
  • 1: $2.46950
  • 500: $2.13810

1718143011

CONN HEADER R/A 11POS 3.96MM

1718143011 Datasheet
  • 1: $2.46979
  • 240: $2.46979

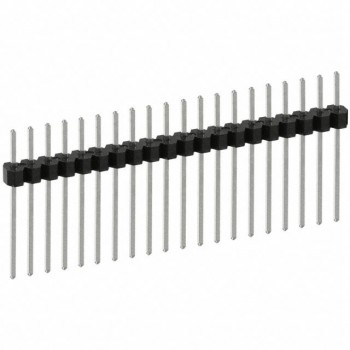

PEC20SAFN

CONN HEADER VERT 20POS 2.54MM

PEC20SAFN Datasheet
  • 1: $2.47000
  • 10: $2.23800
  • 25: $2.10080

929835-01-35

CONN HEADER R/A 35POS 2.54MM

929835-01-35 Datasheet
  • 1: $2.47000
  • 10: $2.24100
  • 25: $2.10360

929665-04-06-I

CONN HEADER VERT 12POS 2.54MM

929665-04-06-I Datasheet
  • 1: $2.47000
  • 10: $2.23800
  • 25: $2.10120

929665-05-06-I

CONN HEADER VERT 12POS 2.54MM

929665-05-06-I Datasheet
  • 1: $2.47000
  • 10: $2.23800
  • 25: $2.10120

4-103777-0-23

CONN HEADER VERT 46POS 2.54MM

4-103777-0-23 Datasheet
  • 1: $2.47000
  • 10: $2.23918
  • 25: $2.10155

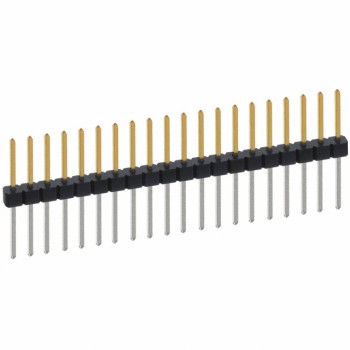

PBC20SFCN

CONN HEADER VERT 20POS 2.54MM

PBC20SFCN Datasheet
  • 1: $2.47000
  • 10: $2.23800
  • 25: $2.10080

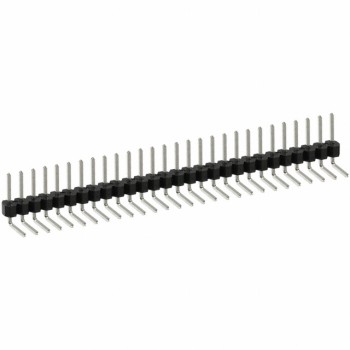

PEC28SBBN
