In Stock: 149

Can ship immediately

Pricing:
  • 1$2.47
  • 10$2.238
  • 25$2.1008
  • 50$2.0094
  • 100$1.918
  • 250$1.73532
  • 500$1.59832

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:20
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.620" (15.75mm)
  • Overall Contact Length:0.950" (24.13mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-65°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


929835-01-35

CONN HEADER R/A 35POS 2.54MM

929835-01-35 Datasheet
  • 1: $2.47000
  • 10: $2.24100
  • 25: $2.10360

929665-04-06-I

CONN HEADER VERT 12POS 2.54MM

929665-04-06-I Datasheet
  • 1: $2.47000
  • 10: $2.23800
  • 25: $2.10120

929665-05-06-I

CONN HEADER VERT 12POS 2.54MM

929665-05-06-I Datasheet
  • 1: $2.47000
  • 10: $2.23800
  • 25: $2.10120

4-103777-0-23

CONN HEADER VERT 46POS 2.54MM

4-103777-0-23 Datasheet
  • 1: $2.47000
  • 10: $2.23918
  • 25: $2.10155

PBC20SFCN

CONN HEADER VERT 20POS 2.54MM

PBC20SFCN Datasheet
  • 1: $2.47000
  • 10: $2.23800
  • 25: $2.10080

PEC28SBBN

CONN HEADER R/A 28POS 2.54MM

PEC28SBBN Datasheet
  • 1: $2.47000
  • 10: $2.24100
  • 25: $2.10360

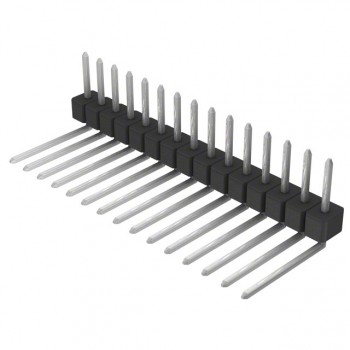

PEC15SBDN

CONN HEADER R/A 15POS 2.54MM

PEC15SBDN Datasheet
  • 1: $2.47000
  • 10: $2.24200
  • 25: $2.10440

PEC28SGAN

CONN HEADER R/A 28POS 2.54MM

PEC28SGAN Datasheet
  • 1: $2.47000
  • 10: $2.24100
  • 25: $2.10360

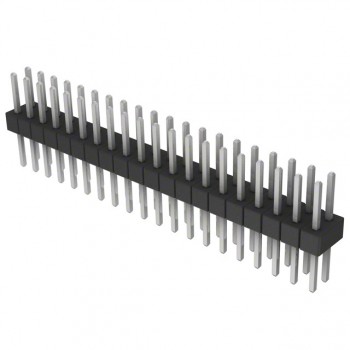

PEC20DABN
