In Stock: 131

Can ship immediately

Pricing:
  • 1$2.47
  • 10$2.23886
  • 25$2.10154
  • 50$2.01044
  • 100$1.91901
  • 250$1.73621
  • 500$1.59913

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:17
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:-
  • Insulation Height:0.138" (3.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


9-146282-0-26

CONN HEADER VERT 26POS 2.54MM

9-146282-0-26 Datasheet
  • 1: $2.47000
  • 10: $2.24142
  • 25: $2.10383

9-146274-0-24

CONN HEADER VERT 24POS 2.54MM

9-146274-0-24 Datasheet
  • 1: $2.47000
  • 10: $2.23918
  • 25: $2.10241

9-146304-0-09

CONN HEADER R/A 9POS 2.54MM

9-146304-0-09 Datasheet
  • 1: $2.47000
  • 10: $2.24467
  • 25: $2.10773

951135-8622-AR

CONN HEADER VERT 35POS 2MM

951135-8622-AR Datasheet
  • 1: $2.47000
  • 10: $2.26142
  • 25: $2.13591

2-1586863-2

CONN HEADER R/A 22POS 4.2MM

2-1586863-2 Datasheet
  • 1: $2.47000

929665-04-06-EU

CONN HEADER VERT 12POS 2.54MM

929665-04-06-EU Datasheet
  • 1: $2.47000
  • 10: $2.24587
  • 25: $2.10819

929665-05-06-EU

CONN HEADER VERT 12POS 2.54MM

929665-05-06-EU Datasheet
  • 1: $2.47000
  • 10: $2.24587
  • 25: $2.10819

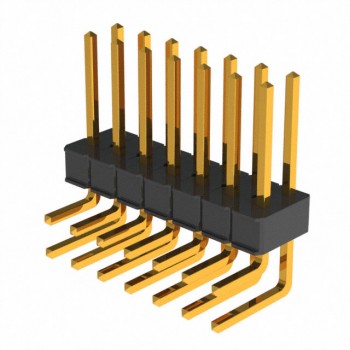

929745-01-07-EU

CONN HEADER R/A 14POS 2.54MM

929745-01-07-EU Datasheet
  • 1: $2.47000
  • 10: $2.24100
  • 25: $2.10360

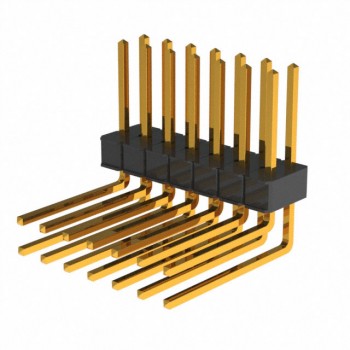

929745-02-07-EU
