0015913300

Woodhead - Molex
In Stock: 196

Can ship immediately

Pricing:
  • 1$2.65832
  • 3,024$2.22912

Quote It

Technical Details

  • Series:C-Grid 71308
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:30
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0022283354

CONN HEADER VERT 35POS 2.54MM

0022283354 Datasheet
  • 1: $2.65916
  • 1500: $2.65916

0901361225

CONN HEADER VERT 25POS 2.54MM

0901361225 Datasheet
  • 1: $2.65936
  • 2880: $2.65936

4-2373377-8

48P,2MM,SHRD HDR,DRVT,SMD,0.38AU

  • 1: $2.65945

0705750078

CONN HEADER R/A 9POS 2.54MM

0705750078 Datasheet
  • 1: $2.65954
  • 12960: $2.65954

4-2842279-6

46P,2MM,SHRD HDR,DRVT,SMD,0.38AU

  • 1: $2.65962

860-10-020-40-001191

CONN HEADER SMD R/A 20POS 1MM

  • 1: $2.65986
  • 2000: $2.32320

9-102975-0-13

CONN HEADER R/A 26POS 2.54MM

  • 1: $2.66000
  • 10: $2.41256
  • 25: $2.26492

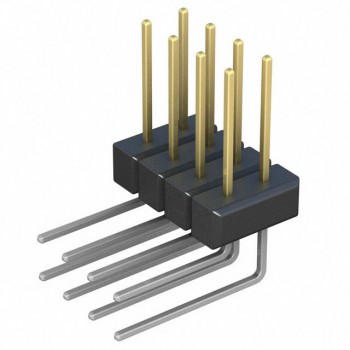

PBC04DBCN
