0022284354

Woodhead - Molex
In Stock: 174

Can ship immediately

Pricing:
  • 1$2.66
  • 10$2.409
  • 25$2.2616
  • 50$2.1634
  • 100$2.0651
  • 250$1.86844
  • 500$1.72092

Quote It

Technical Details

  • Series:KK254, 42375
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:35
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.320" (8.13mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.530" (13.46mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:-
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


929838-04-15

CONN HEADER R/A 30POS 2.54MM

929838-04-15 Datasheet
  • 1: $2.66000
  • 10: $2.41100
  • 25: $2.26320

929500-01-31

CONN HEADER R/A 31POS 2.54MM

929500-01-31 Datasheet
  • 1: $2.66000
  • 10: $2.41000
  • 25: $2.26240

929665-03-07-I

CONN HEADER VERT 14POS 2.54MM

929665-03-07-I Datasheet
  • 1: $2.66000
  • 10: $2.55800
  • 25: $2.34480

929665-04-07-I

CONN HEADER VERT 14POS 2.54MM

929665-04-07-I Datasheet
  • 1: $2.66000
  • 10: $2.55800
  • 25: $2.34480

929665-05-07-I

CONN HEADER VERT 14POS 2.54MM

929665-05-07-I Datasheet
  • 1: $2.66000
  • 10: $2.55800
  • 25: $2.34480

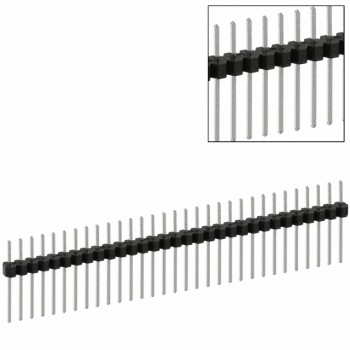

PEC31SADN

CONN HEADER VERT 31POS 2.54MM

PEC31SADN Datasheet
  • 1: $2.66000
  • 10: $2.55400
  • 25: $2.34160

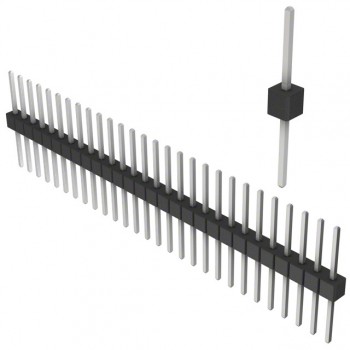

PEC28SFCN

CONN HEADER VERT 28POS 2.54MM

PEC28SFCN Datasheet
  • 1: $2.66000
  • 10: $2.55400
  • 25: $2.34080

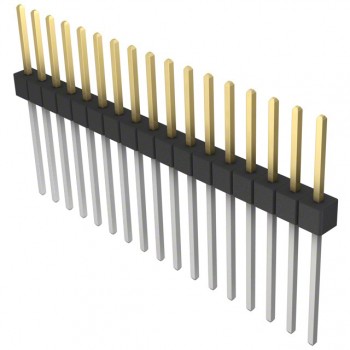

PBC17SFEN

CONN HEADER VERT 17POS 2.54MM

PBC17SFEN Datasheet
  • 1: $2.66000
  • 10: $2.55700
  • 25: $2.34360

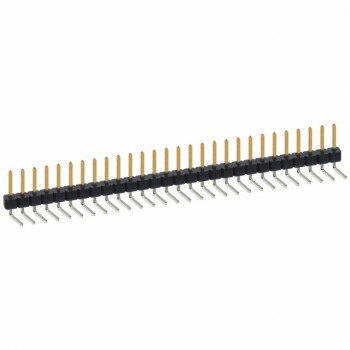

PBC28SBBN
