929838-04-15

3M
In Stock: 186

Can ship immediately

Pricing:
  • 1$2.66
  • 10$2.411
  • 25$2.2632
  • 50$2.1648
  • 100$2.0664
  • 250$1.8696
  • 500$1.722

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:30
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.235" (5.97mm)



  • Contact Length - Post:0.145" (3.68mm)
  • Overall Contact Length:-
  • Insulation Height:0.215" (5.45mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin-Lead
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


929500-01-31

CONN HEADER R/A 31POS 2.54MM

929500-01-31 Datasheet
  • 1: $2.66000
  • 10: $2.41000
  • 25: $2.26240

929665-03-07-I

CONN HEADER VERT 14POS 2.54MM

929665-03-07-I Datasheet
  • 1: $2.66000
  • 10: $2.55800
  • 25: $2.34480

929665-04-07-I

CONN HEADER VERT 14POS 2.54MM

929665-04-07-I Datasheet
  • 1: $2.66000
  • 10: $2.55800
  • 25: $2.34480

929665-05-07-I

CONN HEADER VERT 14POS 2.54MM

929665-05-07-I Datasheet
  • 1: $2.66000
  • 10: $2.55800
  • 25: $2.34480

PEC31SADN

CONN HEADER VERT 31POS 2.54MM

PEC31SADN Datasheet
  • 1: $2.66000
  • 10: $2.55400
  • 25: $2.34160

PEC28SFCN

CONN HEADER VERT 28POS 2.54MM

PEC28SFCN Datasheet
  • 1: $2.66000
  • 10: $2.55400
  • 25: $2.34080

PBC17SFEN

CONN HEADER VERT 17POS 2.54MM

PBC17SFEN Datasheet
  • 1: $2.66000
  • 10: $2.55700
  • 25: $2.34360

PBC28SBBN

CONN HEADER R/A 28POS 2.54MM

PBC28SBBN Datasheet
  • 1: $2.66000
  • 10: $2.55400
  • 25: $2.34080

PEC34DAAN

CONN HEADER VERT 68POS 2.54MM

PEC34DAAN Datasheet
  • 1: $2.66000
  • 10: $2.55700
  • 25: $2.34360

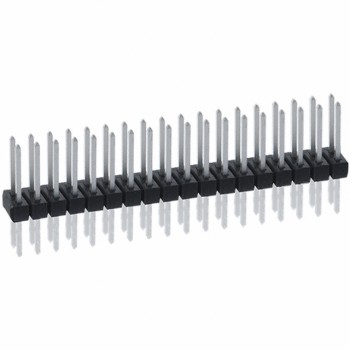

PEC18DFBN
