0741620216

Woodhead - Molex
In Stock: 189

Can ship immediately

Pricing:
  • 1$2.726
  • 1,242$2.726

Quote It

Technical Details

  • Series:C-Grid 74162
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.315" (8.00mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.420" (10.67mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


852-80-020-30-002191

CONN HEADER SMD 20POS 1.27MM

  • 1: $2.72660
  • 800: $2.51106

5-644694-8

CONN HEADER R/A 28POS 2.54MM

5-644694-8 Datasheet
  • 1: $2.72666
  • 500: $2.72666

1723102308

CONN HEADER R/A 8POS 3.5MM

1723102308 Datasheet
  • 1: $2.72668
  • 10: $2.61412
  • 100: $2.17869

5-2267255-1

10 50/50 HDR DRST TH.320 SN

  • 1: $2.72700

0417910863

CONN HEADER VERT 16POS 3.96MM

0417910863 Datasheet
  • 1: $2.72702
  • 1000: $2.72702

3-2842168-4

34P,2MM,SHRD HDR,DRRT,0.76AU,TB

  • 1: $2.72721

3-2842250-4

34P,2MM,SHRD HDR,DRRT,0.76AU,TB

  • 1: $2.72722

800-10-026-10-001101

CONN HEADER VERT 26POS 2.54MM

800-10-026-10-001101 Datasheet
  • 1: $2.72736
  • 250: $2.38208

350-10-125-00-006101

CONN HEADER VERT 25POS 2.54MM

350-10-125-00-006101 Datasheet
  • 1: $2.72741
  • 220: $2.38236

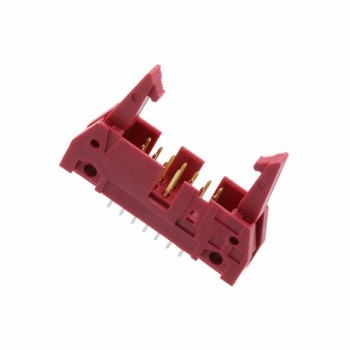

5111374-2
