In Stock: 137

Can ship immediately

Pricing:
  • 1$2.7346
  • 900$2.57762

Quote It

Technical Details

  • Series:AMPMODU MTE
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.200" (5.08mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin-Lead
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Brass
  • Insulation Material:Thermoplastic
  • Features:Board Lock, Keying Slot, Solder Retention
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


800-V3-017-12-002101

CONN HEADER VERT 17POS 2.54MM

800-V3-017-12-002101 Datasheet
  • 1: $2.73582
  • 220: $2.38968

A3A-28PA-2SV(71)

CONN HEADER SMD 28POS 2MM

A3A-28PA-2SV(71) Datasheet
  • 1: $2.73588
  • 17: $2.59176

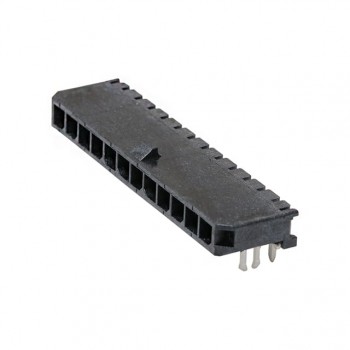

0436501210
