In Stock: 150

Can ship immediately

Pricing:
  • 1$2.75099
  • 312$2.54362

Quote It

Technical Details

  • Series:Minitek® 2.00mm
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:42
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:0.098" (2.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.232" (5.90mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Keying Slot
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Cream
  • Current Rating (Amps):2A (AC/DC)
  • Voltage Rating:200V (AC/DC)

Related Products


71922-064LF

CONN HEADER R/A 64POS 2.54MM

71922-064LF Datasheet
  • 1: $2.75100
  • 300: $2.54363

71918-264RLF

CONN HEADER VERT 64POS 2.54MM

71918-264RLF Datasheet
  • 1: $2.75100
  • 300: $2.54363

57202-F52-22LF

CONN HEADER SMD 44POS 2MM

57202-F52-22LF Datasheet
  • 1: $2.75100
  • 300: $2.54363

57202-F52-23LF

CONN HEADER SMD 46POS 2MM

57202-F52-23LF Datasheet
  • 1: $2.75100
  • 300: $2.54363

54775-602-36LF

CONN HEADER VERT 36POS 2.54MM

54775-602-36LF Datasheet
  • 1: $2.75100
  • 300: $2.54363

2169663-8

CONN HEADER VERT 34POS 2.54MM

2169663-8 Datasheet
  • 1: $2.75122
  • 650: $2.65752

892-18-026-10-004101

CONN HEADER VERT 26POS 2.54MM

892-18-026-10-004101 Datasheet
  • 1: $2.75138
  • 210: $2.46843

892-18-026-20-001101

CONN HEADER R/A 26POS 2.54MM

892-18-026-20-001101 Datasheet
  • 1: $2.75138
  • 210: $2.46843

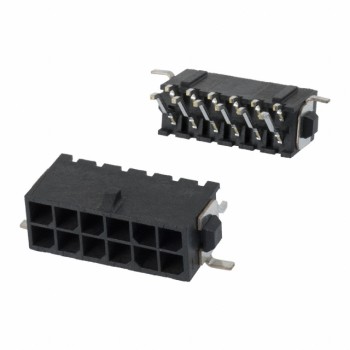

4-794628-2

CONN HEADER SMD R/A 12POS 3MM

4-794628-2 Datasheet
  • 1: $2.75142
  • 450: $2.75142

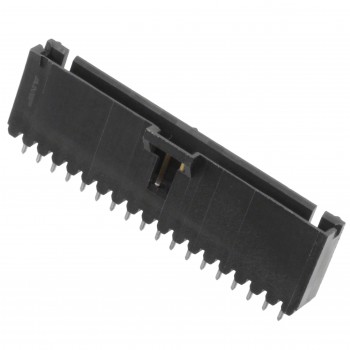

1-103638-7
