0906280135

Woodhead - Molex
In Stock: 172

Can ship immediately

Pricing:
  • 1$2.779
  • 150$2.779

Quote It

Technical Details

  • Series:C-Grid III 90628
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:30
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.266" (6.75mm)



  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:0.478" (12.15mm)
  • Insulation Height:0.098" (2.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


850-10-011-30-135101

CONN HEADER SMD 11POS 1.27MM

850-10-011-30-135101 Datasheet
  • 1: $2.77919
  • 210: $2.42743

1-104346-8

CONN HEADER VERT 20POS 2.54MM

1-104346-8 Datasheet
  • 1: $2.77950
  • 500: $2.59522

800-80-024-66-001101

CONN HEADER VERT 24POS 2.54MM

800-80-024-66-001101 Datasheet
  • 1: $2.77952
  • 250: $2.55988

832-80-022-30-001191

CONN HEADER SMD 22POS 2MM

  • 1: $2.77983
  • 600: $2.56005

PEC11DAGN

CONN HEADER VERT 22POS 2.54MM

PEC11DAGN Datasheet
  • 1: $2.78000
  • 10: $2.66600
  • 25: $2.44440

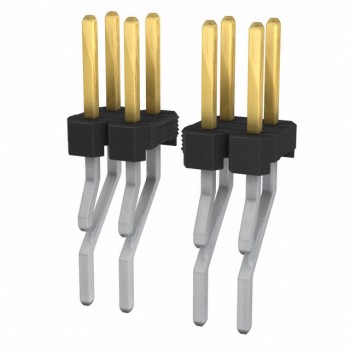

951210-4620-AR-PR

CONN HEADER SMD R/A 10POS 2MM

951210-4620-AR-PR Datasheet
  • 1: $2.78000

929500-01-35

CONN HEADER R/A 35POS 2.54MM

929500-01-35 Datasheet
  • 1: $2.78000
  • 10: $2.66600
  • 25: $2.44360

4-102972-0-29

CONN HEADER VERT 29POS 2.54MM

4-102972-0-29 Datasheet
  • 1: $2.78000
  • 10: $2.66750
  • 25: $2.44467

PBC29SACN

CONN HEADER VERT 29POS 2.54MM

PBC29SACN Datasheet
  • 1: $2.78000
  • 10: $2.66800
  • 25: $2.44560

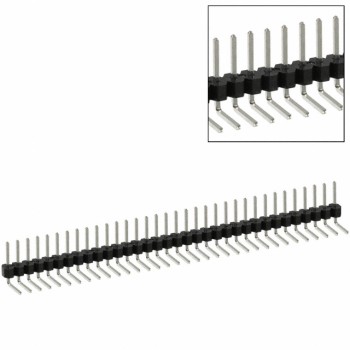

PEC34SBBN
