0702871042

Woodhead - Molex
In Stock: 152

Can ship immediately

Pricing:
  • 1$2.79256
  • 1,000$2.79256

Quote It

Technical Details

  • Series:C-Grid 70287
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:88
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.455" (11.56mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:150.0µin (3.81µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


4-644768-0

CONN HEADER R/A 10POS 3.96MM

4-644768-0 Datasheet
  • 1: $2.79270
  • 500: $2.79270

4-644769-0

CONN HEADER R/A 10POS 3.96MM

4-644769-0 Datasheet
  • 1: $2.79270
  • 500: $2.79270

SMH100-LPSE-D12-ST-BK

CONN HEADER VERT 24POS 1MM

SMH100-LPSE-D12-ST-BK Datasheet
  • 1: $2.79270
  • 1000: $2.79270

SMH150-LPSE-D12-ST-BK

CONN HEADER VERT 24POS 1MM

SMH150-LPSE-D12-ST-BK Datasheet
  • 1: $2.79270
  • 1000: $2.79270

1-146293-6

CONN HEADER VERT 16POS 2.54MM

1-146293-6 Datasheet
  • 1: $2.79311
  • 2000: $2.60795

6-146285-6

CONN HEADER VERT 16POS 2.54MM

6-146285-6 Datasheet
  • 1: $2.79366
  • 2000: $2.58313

98423-F61-16ULF

CONN HEADER R/A 32POS 2MM

98423-F61-16ULF Datasheet
  • 1: $2.79421
  • 252: $2.58351

53612-S40-8

CONN HEADER SMD 40POS 2.54MM

53612-S40-8 Datasheet
  • 1: $2.79423
  • 400: $2.79423

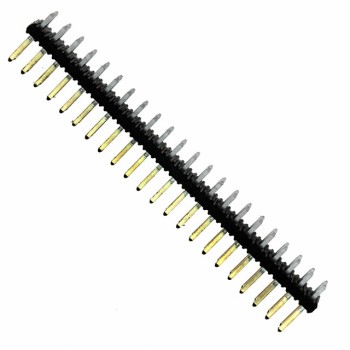

10075024-G01-22ULF
