SBH51-LPPE-D21-ST-BK

Sullins Connector Solutions
In Stock: 186

Can ship immediately

Pricing:
  • 1$2.87778
  • 27$2.87778

Quote It

Technical Details

  • Series:SBH51
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:42
  • Number of Rows:2
  • Row Spacing - Mating:0.039" (1.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:0.098" (2.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.134" (3.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:-

Related Products


3-2373377-8

38P,2MM,SHRD HDR,DRVT,SMD,0.38AU

  • 1: $2.87783

SBH51-LPPE-D20-ST-BK

CONN HEADER VERT 40POS 1MM

SBH51-LPPE-D20-ST-BK Datasheet
  • 1: $2.87786
  • 28: $2.87786

10112690-G02-21ALF

CONN HEADER SMD R/A 42POS 2MM

10112690-G02-21ALF Datasheet
  • 1: $2.87789
  • 800: $2.66104

69155-026LF

CONN HEADER R/A 26POS 2.54MM

69155-026LF Datasheet
  • 1: $2.87866
  • 800: $2.87866

350-80-142-01-899101

CONN HEADER SMD 42POS 2.54MM

350-80-142-01-899101 Datasheet
  • 1: $2.87900
  • 200: $2.65125

450-80-242-01-899101

CONN HEADER SMD 42POS 2.54MM

450-80-242-01-899101 Datasheet
  • 1: $2.87900
  • 200: $2.65125

1-2029037-0

CONN HEADER VERT 10POS 3MM

1-2029037-0 Datasheet
  • 1: $2.87932
  • 4704: $2.87932

0741640310

CONN HEADER R/A 10POS 2.54MM

0741640310 Datasheet
  • 1: $2.87999
  • 1458: $2.87999

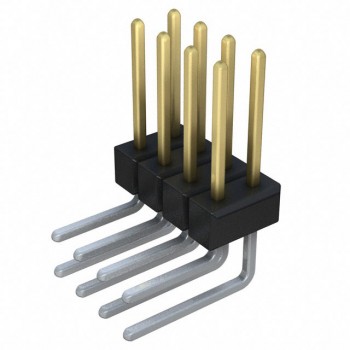

PBC04DGBN

CONN HEADER R/A 8POS 2.54MM

PBC04DGBN Datasheet
  • 1: $2.88000
  • 10: $2.58100
  • 100: $2.12540

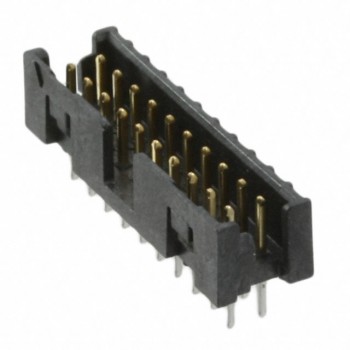

159220-6002
