0702871221

Woodhead - Molex
In Stock: 169

Can ship immediately

Pricing:
  • 1$2.90508
  • 1,400$2.90508

Quote It

Technical Details

  • Series:C-Grid 70287
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:54
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.455" (11.56mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0878981626

CONN HEADER SMD 16POS 2.54MM

0878981626 Datasheet
  • 1: $2.90518

6-1375549-5

CONN HEADER SMD 16POS 2.54MM

6-1375549-5 Datasheet
  • 1: $2.90541
  • 900: $2.73863

802-V3-020-30-001101

CONN HEADER SMD 20POS 2.54MM

802-V3-020-30-001101 Datasheet
  • 1: $2.90570
  • 300: $2.53813

65496-001

CONN HEADER R/A 10POS 2.54MM

65496-001 Datasheet
  • 1: $2.90584
  • 1600: $2.90584

0440680034

CONN HEADER VERT 4POS 4.2MM

0440680034 Datasheet
  • 1: $2.90622
  • 680: $2.82319

350-80-131-00-024101

CONN HEADER VERT 31POS 2.54MM

350-80-131-00-024101 Datasheet
  • 1: $2.90721
  • 190: $2.67732

75168-301-36LF

CONN HEADER R/A 36POS 2.54MM

  • 1: $2.90725

1719771013

SL LCP RTA HDR ASY PEG SMT MTIN

  • 1: $2.90725

800-V3-020-30-001101

CONN HEADER SMD 20POS 2.54MM

800-V3-020-30-001101 Datasheet
  • 1: $2.90727
  • 300: $2.53937

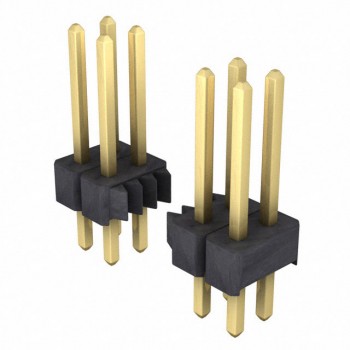

892-70-070-10-003101
