860-10-017-40-001101

Preci-Dip
In Stock: 193

Can ship immediately

Pricing:
  • 1$2.9226
  • 200$2.5527

Quote It

Technical Details

  • Series:860
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:17
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.086" (2.20mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.087" (2.20mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:150VDC

Related Products


852-80-014-30-051101

CONN HEADER SMD 14POS 1.27MM

852-80-014-30-051101 Datasheet
  • 1: $2.92358
  • 190: $2.69247

0713085612

CONN HEADER SMD 12POS 2.54MM

0713085612 Datasheet
  • 1: $2.92397
  • 3672: $2.92397

M80-8280622P

DATAMATE L-TEK DIL MALE VERTICAL

  • 1: $2.92400
  • 520: $2.70131

M80-8280645P

DATAMATE L-TEK DIL MALE VERTICAL

  • 1: $2.92400
  • 520: $2.70131

10075025-F01-46ULF

CONN HEADER VERT 46POS 2MM

10075025-F01-46ULF Datasheet
  • 1: $2.92424
  • 264: $2.70394

10072354-G01-38ULF

CONN HEADER R/A 38POS 2MM

10072354-G01-38ULF Datasheet
  • 1: $2.92425
  • 252: $2.70393

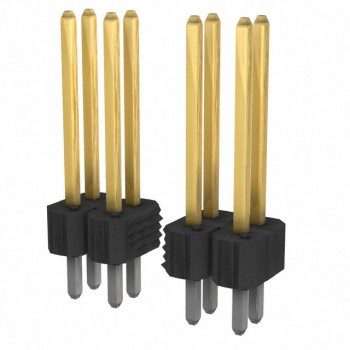

68464-156HLF
