In Stock: 198

Can ship immediately

Pricing:
  • 1$2.92798
  • 500$2.87102

Quote It

Technical Details

  • Series:AMP-Latch
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:34
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks, Short
  • Contact Length - Mating:0.237" (6.02mm)



  • Contact Length - Post:0.162" (4.11mm)
  • Overall Contact Length:-
  • Insulation Height:0.404" (10.26mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold-Palladium
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:Keying Slot
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Blue
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0717640524

CONN HEADER R/A 24POS 2.54MM

0717640524 Datasheet
  • 1: $2.92827

3-2842272-6

36P,2MM,SHRD HDR,DRRT,0.76AU,TR

  • 1: $2.92864

1054311208

NANO-FIT HDR SMT VT SGL 8CKT 15A

  • 1: $2.92898

450-V3-222-00-106101

CONN HEADER SMD 22POS 2.54MM

450-V3-222-00-106101 Datasheet
  • 1: $2.92915
  • 160: $2.92915

802-V3-018-12-002101

CONN HEADER VERT 18POS 2.54MM

  • 1: $2.92960
  • 200: $2.55875

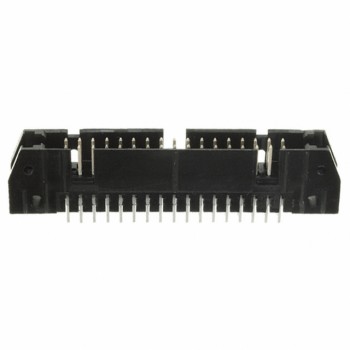

102155-8

CONN HEADER VERT 34POS 2.54MM

102155-8 Datasheet
  • 1: $2.92985
  • 650: $2.92031

929450-01-13-I

CONN HEADER VERT 13POS 2.54MM

929450-01-13-I Datasheet
  • 1: $2.93000
  • 10: $2.81200
  • 25: $2.57800

PEC18DBBN

CONN HEADER R/A 36POS 2.54MM

PEC18DBBN Datasheet
  • 1: $2.93000
  • 10: $2.80800
  • 25: $2.57400

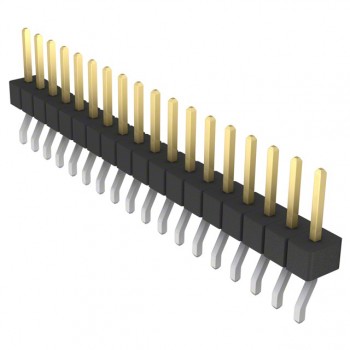

GBC18SBSN-M89

CONN HEADER SMD R/A 18POS 2.54MM

GBC18SBSN-M89 Datasheet
  • 1: $2.93000
  • 10: $2.80800
  • 25: $2.57400

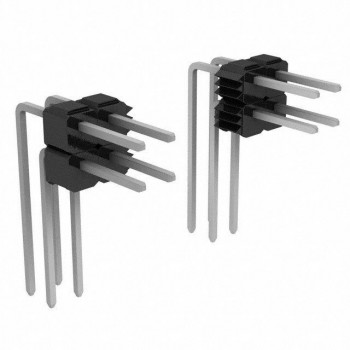

929838-02-25-RK
