In Stock: 152

Can ship immediately

Pricing:
  • 1$2.94208
  • 504$2.92161

Quote It

Technical Details

  • Series:AMP-Latch
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks, Long
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.639" (16.23mm)
  • Insulation Height:0.549" (13.94mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold-Palladium
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:-
  • Insulation Material:-
  • Features:Keying Slot, Mounting Flange
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:250VAC

Related Products


103310-7

CONN HEADER R/A 34POS 2.54MM

103310-7 Datasheet
  • 1: $2.94211
  • 350: $2.62820

802-80-036-30-001101

CONN HEADER SMD 36POS 2.54MM

802-80-036-30-001101 Datasheet
  • 1: $2.94221
  • 204: $2.70941

850-80-023-30-001101

CONN HEADER SMD 23POS 1.27MM

850-80-023-30-001101 Datasheet
  • 1: $2.94242
  • 190: $2.70963

800-10-030-10-002101

CONN HEADER VERT 30POS 2.54MM

800-10-030-10-002101 Datasheet
  • 1: $2.94244
  • 250: $2.57012

5-644695-6

CONN HEADER VERT 26POS 2.54MM

5-644695-6 Datasheet
  • 1: $2.94280
  • 500: $2.54788

800-10-026-30-480101

CONN HEADER SMD 26POS 2.54MM

800-10-026-30-480101 Datasheet
  • 1: $2.94280
  • 200: $2.57045

4-647075-0

CONN HEADER VERT 10POS 2.54MM

4-647075-0 Datasheet
  • 1: $2.94294
  • 500: $2.54800

1473898-1

CONN HEADER VERT 12POS 2.2MM

1473898-1 Datasheet
  • 1: $2.94300
  • 3456: $2.79450

0702800747

CONN HEADER VERT 78POS 2.54MM

0702800747 Datasheet
  • 1: $2.94307
  • 1000: $2.94307

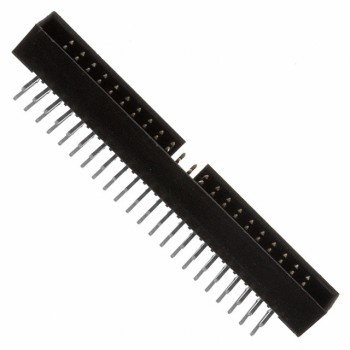

957244-5002-AR
