M52-040023W2045

Harwin
In Stock: 187

Can ship immediately

Pricing:
  • 1$3.0218
  • 1,000$2.79125

Quote It

Technical Details

  • Series:Archer M52
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:40
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:0.091" (2.30mm)
  • Overall Contact Length:0.346" (8.80mm)
  • Insulation Height:0.098" (2.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA6T), Nylon 6T
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


0705750046

CONN HEADER R/A 12POS 2.54MM

0705750046 Datasheet
  • 1: $3.02198
  • 10080: $3.02198

4-644754-7

CONN HEADER R/A 17POS 3.96MM

4-644754-7 Datasheet
  • 1: $3.02200
  • 250: $2.87808

350-80-134-00-106101

CONN HEADER SMD 34POS 2.54MM

350-80-134-00-106101 Datasheet
  • 1: $3.02242
  • 190: $2.78337

350-80-134-00-206101

CONN HEADER SMD R/A 34POS 2.54MM

350-80-134-00-206101 Datasheet
  • 1: $3.02242
  • 190: $2.78337

450-80-234-00-106101

CONN HEADER SMD 34POS 2.54MM

450-80-234-00-106101 Datasheet
  • 1: $3.02242
  • 190: $2.78337

10131318-2411100LF

CONN HEADER R/A 24POS 4.2MM

  • 1: $3.02338
  • 210: $3.02338

351-80-111-00-017101

CONN HEADER VERT 11POS 2.54MM

351-80-111-00-017101 Datasheet
  • 1: $3.02358
  • 190: $2.78458

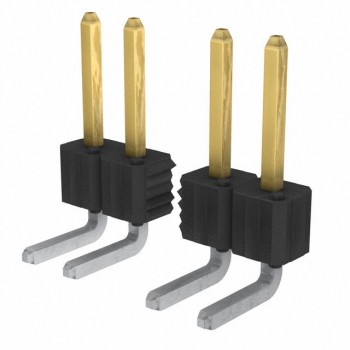

10118884-536004LF
