894-70-081-10-001101

Preci-Dip
In Stock: 174

Can ship immediately

Pricing:
  • 1$3.025
  • 190$2.74237

Quote It

Technical Details

  • Series:894
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:81
  • Number of Rows:3
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.122" (3.10mm)
  • Overall Contact Length:0.458" (11.64mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


350-10-137-01-609101

CONN HEADER VERT 19POS 5.08MM

350-10-137-01-609101 Datasheet
  • 1: $3.02520
  • 200: $2.64235

4-641203-2

CONN HEADER VERT 12POS 3.96MM

4-641203-2 Datasheet
  • 1: $3.02540
  • 500: $3.02540

2-826651-2

CONN HEADER R/A 22POS 2.54MM

2-826651-2 Datasheet
  • 1: $3.02550
  • 200: $2.93735

0015913180

CONN HEADER SMD 18POS 2.54MM

0015913180 Datasheet
  • 1: $3.02575
  • 2484: $3.02575

2-103747-0

20 MODII HDR SRST B/A .100CL

  • 1: $3.02587

830-80-024-30-001101

CONN HEADER SMD 24POS 2MM

830-80-024-30-001101 Datasheet
  • 1: $3.02600
  • 190: $2.78658

890-18-028-20-002101

CONN HEADER R/A 28POS 2.54MM

890-18-028-20-002101 Datasheet
  • 1: $3.02600
  • 190: $2.71489

957250-6002-AR

CONN HEADER VERT 50POS 2MM

957250-6002-AR Datasheet
  • 1: $3.02640
  • 10: $2.90524
  • 100: $2.42112

4-794628-4

CONN HEADER SMD R/A 14POS 3MM

4-794628-4 Datasheet
  • 1: $3.02642
  • 450: $3.02642

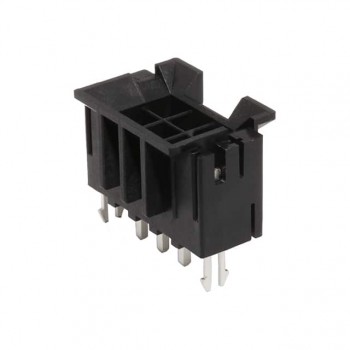

0440680101
