In Stock: 133

Can ship immediately

Pricing:
  • 1$3.06546
  • 2,000$2.84256

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:24
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.320" (8.13mm)



  • Contact Length - Post:0.250" (6.35mm)
  • Overall Contact Length:0.660" (16.76mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


DF51A-30DP-2DS(50)

CONN HEADER VERT

  • 1: $3.06597

350-80-140-00-013101

CONN HEADER VERT 40POS 2.54MM

350-80-140-00-013101 Datasheet
  • 1: $3.06739
  • 180: $2.82478

351-80-133-00-003101

CONN HEADER VERT 33POS 2.54MM

351-80-133-00-003101 Datasheet
  • 1: $3.06778
  • 180: $2.82517

5-794682-2

CONN HEADER VERT 22POS 3MM

5-794682-2 Datasheet
  • 1: $3.06802
  • 1001: $3.06802

800-10-029-40-001101

CONN HEADER SMD R/A 29POS 2.54MM

800-10-029-40-001101 Datasheet
  • 1: $3.06844
  • 250: $2.68004

1241656-1

CONN HEADER R/A 32POS 2.54MM

1241656-1 Datasheet
  • 1: $3.06881
  • 540: $2.92265

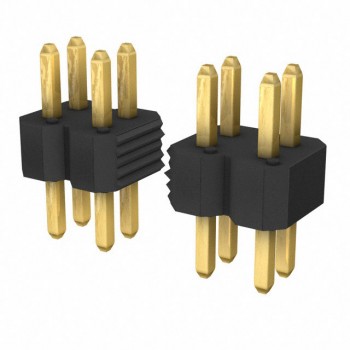

77313-GAE-10LF
