802-10-014-62-001000

Mill-Max
In Stock: 127

Can ship immediately

Pricing:
  • 1$3.21
  • 10$3.08224
  • 25$2.82523
  • 50$2.69683
  • 100$2.56843
  • 250$2.24739
  • 500$2.18319

Quote It

Technical Details

  • Series:802
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.191" (4.85mm)



  • Contact Length - Post:0.143" (3.63mm)
  • Overall Contact Length:0.444" (11.28mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


6-146306-0

CONN HEADER R/A 10POS 2.54MM

6-146306-0 Datasheet
  • 1: $3.24000
  • 10: $3.11549
  • 100: $2.59645

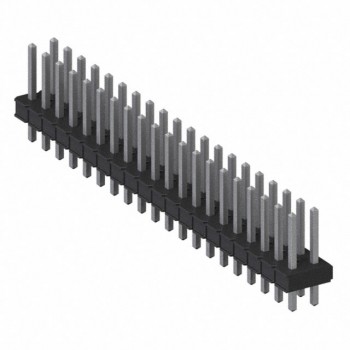

929836-01-20
