CWN-371-16-0000

CW Industries
In Stock: 196

Can ship immediately

Pricing:
  • 1$3.234
  • 100$2.86

Quote It

Technical Details

  • Series:CWN
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Wire Wrap
  • Fastening Type:Latch Lock/Eject Hooks, Short
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.610" (15.49mm)
  • Overall Contact Length:-
  • Insulation Height:0.681" (17.30mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Nickel
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:Keying Slot
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Blue
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


800-80-050-30-001101

CONN HEADER SMD 50POS 2.54MM

800-80-050-30-001101 Datasheet
  • 1: $3.23400
  • 130: $3.23400

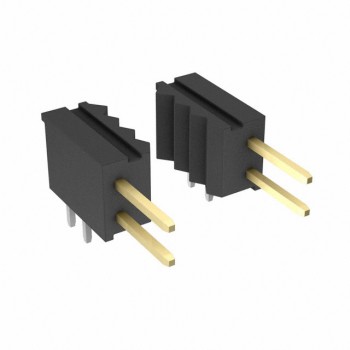

A1-26PA-2.54DS(71)
