0702871096

Woodhead - Molex
In Stock: 151

Can ship immediately

Pricing:
  • 1$3.24278
  • 1,000$3.24278

Quote It

Technical Details

  • Series:C-Grid 70287
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:98
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.320" (8.13mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.535" (13.59mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:150.0µin (3.81µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0702871138

CONN HEADER VERT 84POS 2.54MM

0702871138 Datasheet
  • 1: $3.24278
  • 1000: $3.24278

SBH51-LPSE-D20-SM-BK

CONN HEADER SMD 40POS 1MM

SBH51-LPSE-D20-SM-BK Datasheet
  • 1: $3.24293
  • 1000: $3.24293

10075024-F01-24ULF

CONN HEADER VERT 48POS 2MM

10075024-F01-24ULF Datasheet
  • 1: $3.24321
  • 240: $2.99879

57102-F06-24ULF

CONN HEADER VERT 48POS 2MM

57102-F06-24ULF Datasheet
  • 1: $3.24321
  • 240: $2.99879

57102-G06-23ULF

CONN HEADER VERT 46POS 2MM

57102-G06-23ULF Datasheet
  • 1: $3.24321
  • 240: $2.99879

350-80-127-00-012101

CONN HEADER VERT 27POS 1.78MM

350-80-127-00-012101 Datasheet
  • 1: $3.24341
  • 170: $2.98700

802-80-048-30-480101

CONN HEADER SMD 48POS 2.54MM

802-80-048-30-480101 Datasheet
  • 1: $3.24459
  • 170: $2.98818

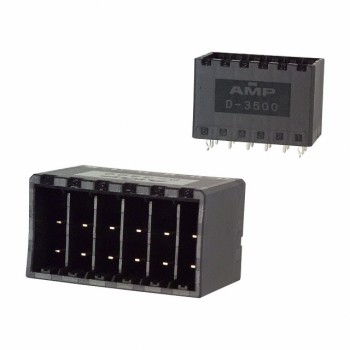

316516-3

CONN HEADER VERT 12POS 5.08MM

316516-3 Datasheet
  • 1: $3.24551
  • 5400: $2.50692

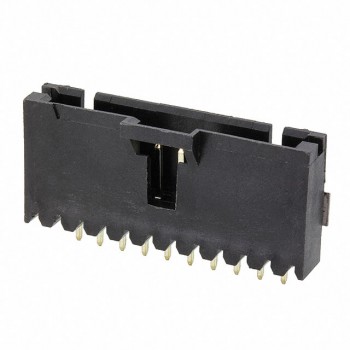

2-147324-6
