In Stock: 104

Can ship immediately

Pricing:
  • 1$3.25
  • 10$3.11827
  • 25$2.8587
  • 50$2.72849
  • 100$2.5987
  • 250$2.27383
  • 500$2.20886

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:58
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.533" (13.55mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin-Lead
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products

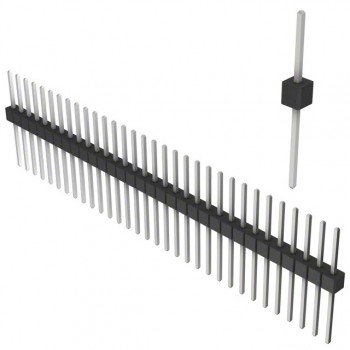

PEC32SFDN

CONN HEADER VERT 32POS 2.54MM

PEC32SFDN Datasheet
  • 1: $3.25000
  • 10: $3.12300
  • 25: $2.86280

PBC32SADN

CONN HEADER VERT 32POS 2.54MM

PBC32SADN Datasheet
  • 1: $3.25000
  • 10: $3.12300
  • 25: $2.86280

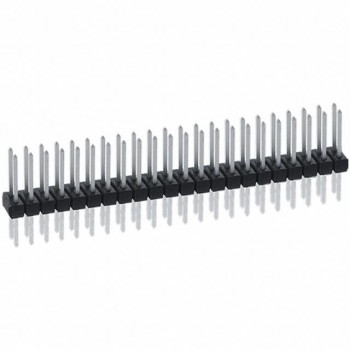

PEC22DFBN

CONN HEADER VERT 44POS 2.54MM

PEC22DFBN Datasheet
  • 1: $3.25000
  • 10: $3.11500
  • 25: $2.85560

PEC20DBBN

CONN HEADER R/A 40POS 2.54MM

PEC20DBBN Datasheet
  • 1: $3.25000
  • 10: $3.12000
  • 25: $2.86000

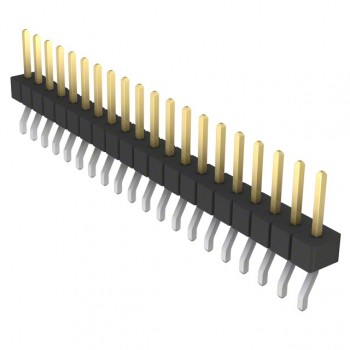

GBC20SBSN-M89
