0713085092

Woodhead - Molex
In Stock: 151

Can ship immediately

Pricing:
  • 1$4.82103
  • 1,296$4.82103

Quote It

Technical Details

  • Series:C-Grid 71308
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:92
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.320" (8.13mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:150.0µin (3.81µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Board Guide
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0428194222

CONN HEADER VERT 4POS 10MM

0428194222 Datasheet
  • 1: $4.82104
  • 10: $4.60956

M80-7024522

CONN HEADER VERT 45POS 2MM

M80-7024522 Datasheet
  • 1: $4.82120
  • 450: $4.59171

M80-8662005

CONN HEADER R/A 20POS 2MM

  • 1: $4.82160

15120502401000

CONN HEADER SMD 50POS 1.27MM

15120502401000 Datasheet
  • 1: $4.82164
  • 220: $4.82164

450-80-268-00-001101

CONN HEADER VERT 68POS 2.54MM

450-80-268-00-001101 Datasheet
  • 1: $4.82218
  • 110: $4.67464

450-80-268-00-018101

CONN HEADER VERT 68POS 2.54MM

450-80-268-00-018101 Datasheet
  • 1: $4.82218
  • 110: $4.67464

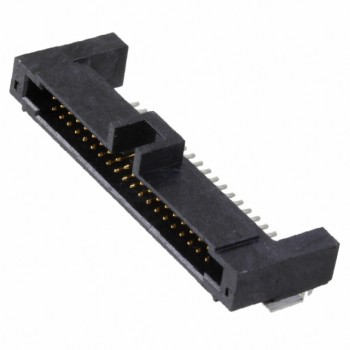

5-104895-4
