In Stock: 108

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:22
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.520" (13.21mm)
  • Overall Contact Length:0.938" (23.83mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PTC21SFEN

CONN HEADER VERT 21POS 2.54MM

PTC21SFEN Datasheet

Call for price


PTC20SFEN

CONN HEADER VERT 20POS 2.54MM

PTC20SFEN Datasheet

Call for price


PTC19SFEN

CONN HEADER VERT 19POS 2.54MM

PTC19SFEN Datasheet

Call for price


PTC18SFEN

CONN HEADER VERT 18POS 2.54MM

PTC18SFEN Datasheet

Call for price


PTC17SFEN

CONN HEADER VERT 17POS 2.54MM

PTC17SFEN Datasheet

Call for price


PTC16SFEN

CONN HEADER VERT 16POS 2.54MM

PTC16SFEN Datasheet

Call for price

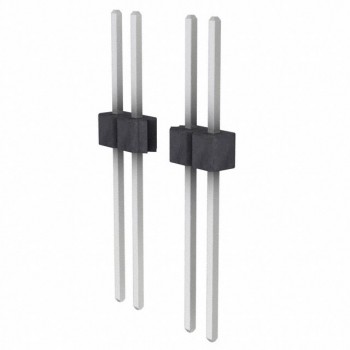

PTC15SFEN
