In Stock: 128

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:25
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.450" (11.43mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PZC24SAAN

CONN HEADER VERT 24POS 2.54MM

PZC24SAAN Datasheet

Call for price


PZC23SAAN

CONN HEADER VERT 23POS 2.54MM

PZC23SAAN Datasheet

Call for price


PZC22SAAN

CONN HEADER VERT 22POS 2.54MM

PZC22SAAN Datasheet

Call for price


PZC21SAAN

CONN HEADER VERT 21POS 2.54MM

PZC21SAAN Datasheet

Call for price


PZC20SAAN

CONN HEADER VERT 20POS 2.54MM

PZC20SAAN Datasheet

Call for price


PZC19SAAN

CONN HEADER VERT 19POS 2.54MM

PZC19SAAN Datasheet

Call for price


PZC18SAAN

CONN HEADER VERT 18POS 2.54MM

PZC18SAAN Datasheet

Call for price


PZC17SAAN

CONN HEADER VERT 17POS 2.54MM

PZC17SAAN Datasheet

Call for price


PZC16SAAN

CONN HEADER VERT 16POS 2.54MM

PZC16SAAN Datasheet

Call for price

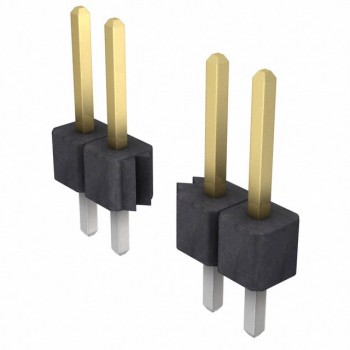

PZC15SAAN
