In Stock: 120

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:17
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.450" (11.43mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PZC16SAAN

CONN HEADER VERT 16POS 2.54MM

PZC16SAAN Datasheet

Call for price


PZC15SAAN

CONN HEADER VERT 15POS 2.54MM

PZC15SAAN Datasheet

Call for price


PZC14SAAN

CONN HEADER VERT 14POS 2.54MM

PZC14SAAN Datasheet

Call for price


PZC13SAAN

CONN HEADER VERT 13POS 2.54MM

PZC13SAAN Datasheet

Call for price


PZC12SAAN

CONN HEADER VERT 12POS 2.54MM

PZC12SAAN Datasheet

Call for price


PZC11SAAN

CONN HEADER VERT 11POS 2.54MM

PZC11SAAN Datasheet

Call for price


PZC09SAAN

CONN HEADER VERT 9POS 2.54MM

PZC09SAAN Datasheet

Call for price


PZC08SAAN

CONN HEADER VERT 8POS 2.54MM

PZC08SAAN Datasheet

Call for price


PZC07SAAN

CONN HEADER VERT 7POS 2.54MM

PZC07SAAN Datasheet

Call for price

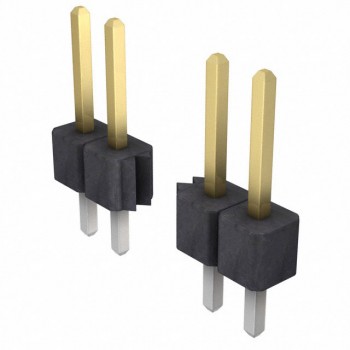

PZC06SAAN
