In Stock: 193

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:34
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.320" (8.13mm)
  • Overall Contact Length:0.650" (16.51mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PZC33SACN

CONN HEADER VERT 33POS 2.54MM

PZC33SACN Datasheet

Call for price


PZC32SACN

CONN HEADER VERT 32POS 2.54MM

PZC32SACN Datasheet

Call for price


PZC31SACN

CONN HEADER VERT 31POS 2.54MM

PZC31SACN Datasheet

Call for price


PZC30SACN

CONN HEADER VERT 30POS 2.54MM

PZC30SACN Datasheet

Call for price


PZC29SACN

CONN HEADER VERT 29POS 2.54MM

PZC29SACN Datasheet

Call for price


PZC28SACN

CONN HEADER VERT 28POS 2.54MM

PZC28SACN Datasheet

Call for price


PZC27SACN

CONN HEADER VERT 27POS 2.54MM

PZC27SACN Datasheet

Call for price

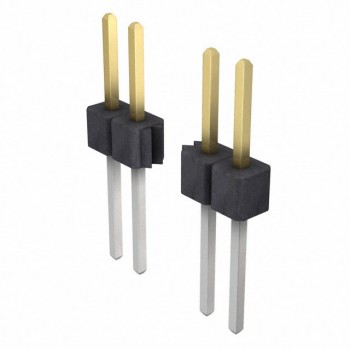

PZC26SACN
