In Stock: 198

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:22
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.420" (10.67mm)
  • Overall Contact Length:0.838" (21.29mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PZC21SFDN

CONN HEADER VERT 21POS 2.54MM

PZC21SFDN Datasheet

Call for price


PZC20SFDN

CONN HEADER VERT 20POS 2.54MM

PZC20SFDN Datasheet

Call for price


PZC19SFDN

CONN HEADER VERT 19POS 2.54MM

PZC19SFDN Datasheet

Call for price


PZC18SFDN

CONN HEADER VERT 18POS 2.54MM

PZC18SFDN Datasheet

Call for price


PZC17SFDN

CONN HEADER VERT 17POS 2.54MM

PZC17SFDN Datasheet

Call for price


PZC16SFDN

CONN HEADER VERT 16POS 2.54MM

PZC16SFDN Datasheet

Call for price


PZC15SFDN

CONN HEADER VERT 15POS 2.54MM

PZC15SFDN Datasheet

Call for price

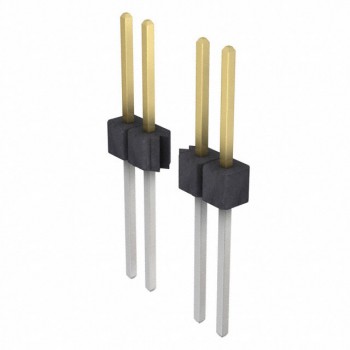

PZC14SFDN
