In Stock: 109

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:62
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.230" (5.84mm)
  • Overall Contact Length:0.560" (14.22mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PTC30DABN

CONN HEADER VERT 60POS 2.54MM

PTC30DABN Datasheet

Call for price


PTC29DABN

CONN HEADER VERT 58POS 2.54MM

PTC29DABN Datasheet

Call for price


PTC28DABN

CONN HEADER VERT 56POS 2.54MM

PTC28DABN Datasheet

Call for price


PTC27DABN

CONN HEADER VERT 54POS 2.54MM

PTC27DABN Datasheet

Call for price


PTC26DABN

CONN HEADER VERT 52POS 2.54MM

PTC26DABN Datasheet

Call for price


PTC25DABN

CONN HEADER VERT 50POS 2.54MM

PTC25DABN Datasheet

Call for price


PTC24DABN

CONN HEADER VERT 48POS 2.54MM

PTC24DABN Datasheet

Call for price


PTC23DABN

CONN HEADER VERT 46POS 2.54MM

PTC23DABN Datasheet

Call for price

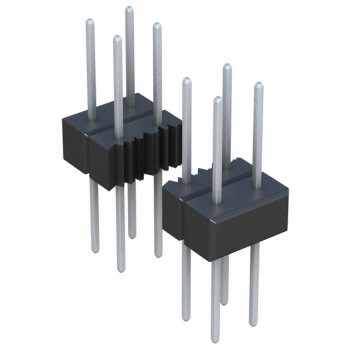

PTC22DABN
