In Stock: 137

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:72
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.520" (13.21mm)
  • Overall Contact Length:0.850" (21.59mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PTC35DAEN

CONN HEADER VERT 70POS 2.54MM

PTC35DAEN Datasheet

Call for price


PTC34DAEN

CONN HEADER VERT 68POS 2.54MM

PTC34DAEN Datasheet

Call for price


PTC33DAEN

CONN HEADER VERT 66POS 2.54MM

PTC33DAEN Datasheet

Call for price


PTC32DAEN

CONN HEADER VERT 64POS 2.54MM

PTC32DAEN Datasheet

Call for price


PTC31DAEN

CONN HEADER VERT 62POS 2.54MM

PTC31DAEN Datasheet

Call for price


PTC30DAEN

CONN HEADER VERT 60POS 2.54MM

PTC30DAEN Datasheet

Call for price


PTC29DAEN

CONN HEADER VERT 58POS 2.54MM

PTC29DAEN Datasheet

Call for price


PTC28DAEN

CONN HEADER VERT 56POS 2.54MM

PTC28DAEN Datasheet

Call for price


PTC27DAEN

CONN HEADER VERT 54POS 2.54MM

PTC27DAEN Datasheet

Call for price

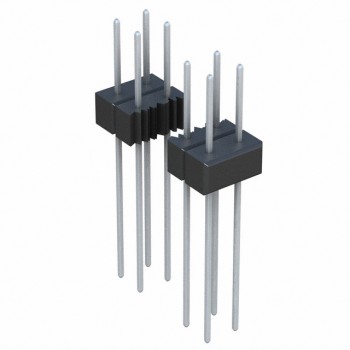

PTC26DAEN
