In Stock: 111

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

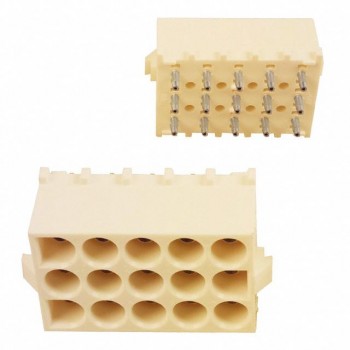

Technical Details

  • Series:Universal MATE-N-LOK
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.250" (6.35mm)
  • Number of Positions:15
  • Number of Rows:3
  • Row Spacing - Mating:0.250" (6.35mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.215" (5.46mm)
  • Overall Contact Length:-
  • Insulation Height:0.550" (13.97mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-2
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-
