In Stock: 134

Can ship immediately

Pricing:
  • 1$2.77303
  • 600$2.77303

Quote It

Technical Details

  • Series:Minitek®
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:30
  • Number of Positions Loaded:All
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:-
  • Insulation Height:0.177" (4.50mm)
  • Contact Length - Post:-
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Guide
  • Current Rating (Amps):2A
  • Voltage Rating:200V

Related Products


316-87-125-41-011101

CONN SOCKET 25POS 0.1 GOLD PCB

316-87-125-41-011101 Datasheet
  • 1: $2.77356
  • 250: $2.51444

801-83-021-10-143101

CONN SOCKET 21POS 0.1 GOLD PCB

801-83-021-10-143101 Datasheet
  • 1: $2.77360
  • 400: $2.16555

87022-620LF

CONN RCPT 40POS 0.05 GOLD SMD

87022-620LF Datasheet
  • 1: $2.77398
  • 4600: $2.77398

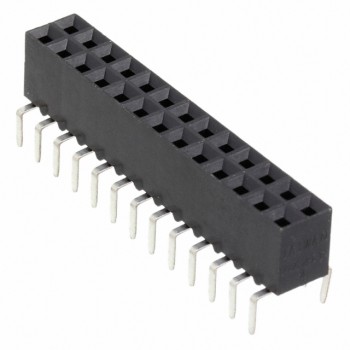

534267-6

CONN RCPT 26POS 0.1 GOLD PCB

534267-6 Datasheet
  • 1: $2.77451
  • 850: $2.77451

316-83-128-41-018101

CONN SOCKET 28POS 0.1 GOLD PCB

316-83-128-41-018101 Datasheet
  • 1: $2.77462
  • 210: $2.47590

416-83-228-41-018101

CONN SOCKET 28POS 0.1 GOLD PCB

416-83-228-41-018101 Datasheet
  • 1: $2.77462
  • 210: $2.47590

801-87-043-20-442101

CONN SOCKET 22P 0.2 GOLD PCB R/A

801-87-043-20-442101 Datasheet
  • 1: $2.77681
  • 210: $2.51752

803-83-030-10-012101

CONN SOCKET 30POS 0.1 GOLD PCB

803-83-030-10-012101 Datasheet
  • 1: $2.77700
  • 400: $2.16820

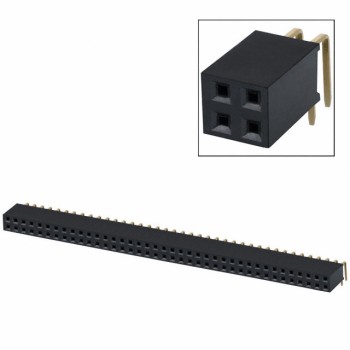

PPPC392LJBN-RC
