0009623101
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 10P 0.156 GOLD EDGE MT
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
-
ECAD Model
- Share
In Stock: 179
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:KK396, 2145
- Package:Tray
- Part Status:Obsolete
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:10
- Number of Positions Loaded:All
- Pitch - Mating:0.156" (3.96mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Board Edge, Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Insulation Color:White
- Insulation Height:0.308" (7.82mm)
- Contact Length - Post:0.145" (3.68mm)
- Operating Temperature:-40°C ~ 80°C
- Material Flammability Rating:UL94 V-2
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Board Hooks
- Current Rating (Amps):4.5A
- Voltage Rating:600V
Related Products

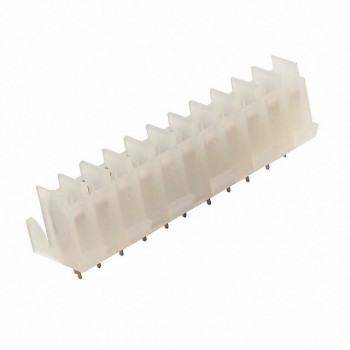

CONN RCPT 12P 0.156 GOLD EDGE MT
