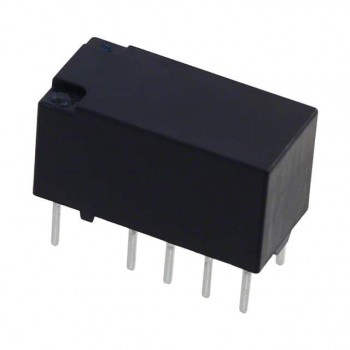

TX2SA-24V-TH-Z
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE DPDT 2A 24V
- Category
- Datasheet TX2SA-24V-TH-Z Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
- 1$3.66
- 500$3.66
Quote It
Technical Details
- Series:TX-TH
- Package:Tape & Reel (TR)
- Part Status:Active
- Mounting Type:Surface Mount
- Coil Voltage:24VDC
- Contact Form:DPDT (2 Form C)
- Contact Rating (Current):2 A
- Switching Voltage:250VAC, 220VDC - Max
- Coil Current:5.8 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:Gull Wing
- Seal Rating:Sealed - Fully
- Coil Insulation:-
- Must Operate Voltage:18 VDC
- Must Release Voltage:2.4 VDC
- Operate Time:4 ms
- Release Time:4 ms
- Operating Temperature:-40°C ~ 85°C
- Contact Material:Silver (Ag), Gold (Au)
- Relay Type:General Purpose
