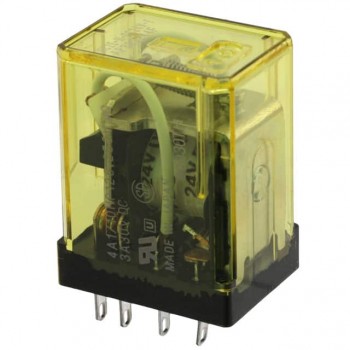

HC4ED-H-DC48V
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE 4PDT 1A 48VDC
- Category
- Datasheet HC4ED-H-DC48V Datasheet
-
ECAD Model
- Share
In Stock: 164
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:HCE
- Package:Bulk
- Part Status:Obsolete
- Mounting Type:Socketable
- Coil Voltage:48VDC
- Contact Form:4PDT (4 Form C)
- Contact Rating (Current):1 A
- Switching Voltage:250VAC - Max
- Coil Current:18.5 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:Plug In
- Seal Rating:-
- Coil Insulation:-
- Must Operate Voltage:38.4 VDC
- Must Release Voltage:4.8 VDC
- Operate Time:20 ms
- Release Time:20 ms
- Operating Temperature:-40°C ~ 60°C
- Contact Material:Silver Nickel (AgNi), Gold (Au)
- Relay Type:General Purpose
