- Lifecycle status Active
- RoHS RoHS Compliant

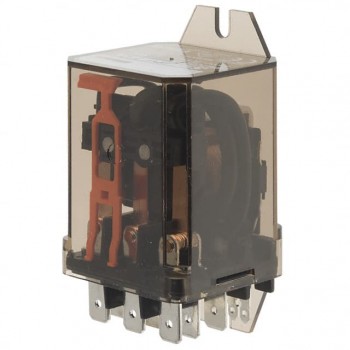

- DescriptionRELAY GEN PURPOSE 3PDT 10A 12V
- Category
- Datasheet RM303012 Datasheet
-
ECAD Model
- Share
In Stock: 123
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:RM, SCHRACK
- Package:Tray
- Part Status:Obsolete
- Mounting Type:Chassis Mount
- Coil Voltage:12VDC
- Contact Form:3PDT (3 Form C)
- Contact Rating (Current):10 A
- Switching Voltage:440VAC - Max
- Coil Current:109 mA
- Coil Type:Non Latching
- Features:Mechanical Indicator
- Termination Style:Quick Connect - 0.187" (4.7mm)
- Seal Rating:-
- Coil Insulation:-
- Must Operate Voltage:9 VDC
- Must Release Voltage:1.2 VDC
- Operate Time:15 ms
- Release Time:10 ms
- Operating Temperature:-45°C ~ 60°C
- Contact Material:Silver Cadmium Oxide (AgCdO)
- Relay Type:General Purpose
