HUF75623S3ST

Rochester Electronics
In Stock: 3,660

Can ship immediately

Pricing:
  • 1$0.49
  • 800$0.49

Quote It

Technical Details

  • Series:UltraFET™
  • Package:Bulk
  • Part Status:Obsolete
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):100 V
  • Current - Continuous Drain (Id) @ 25°C:22A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:64mOhm @ 22A, 10V
  • Vgs(th) (Max) @ Id:4V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:52 nC @ 20 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:790 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):85W (Tc)
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:D²PAK (TO-263AB)
  • Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Related Products


RJK0657DPA-WS#J5A

N-CHANNEL POWER MOSFET

  • 1: $0.49000

SFM9014TF

MOSFET P-CH 60V 1.8A SOT223-4

SFM9014TF Datasheet
  • 1: $0.49000

IRFR4104PBF

HEXFET N-CHANNEL POWER MOSFET

IRFR4104PBF Datasheet
  • 1: $0.49000
  • 3000: $0.49000

FSS273-TL-E

N-CHANNEL MOSFET

  • 1: $0.49000

IRFSL3607PBF

HEXFET POWER MOSFET

IRFSL3607PBF Datasheet
  • 1: $0.49000
  • 10: $0.44212
  • 100: $0.35515

SI6933DQ

P-CHANNEL MOSFET

  • 1: $0.49000

SI7625DN-T1-GE3

MOSFET P-CH 30V 35A PPAK1212-8

SI7625DN-T1-GE3 Datasheet
  • 1: $1.18000
  • 3000: $0.55487
  • 6000: $0.52882

IRF7488TRPBF

POWER FIELD-EFFECT TRANSISTOR, 6

IRF7488TRPBF Datasheet
  • 1: $0.50000
  • 4000: $0.50000
  • 8000: $0.47500

CSD16322Q5C

MOSFET N-CH 25V 21A/97A 8VSON

  • 1: $0.50000
  • 2500: $0.50000

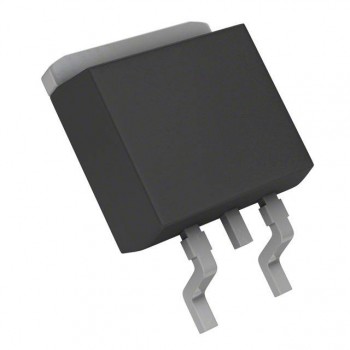

SPD03N50C3ATMA1
