STWA45N65M5
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 650V 35A TO247
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet STWA45N65M5 Datasheet
-
ECAD Model
- Share
In Stock: 165
Can ship immediately
Pricing:
- 1$7.33
- 30$6.00781
- 120$5.42171
- 510$4.54251
- 1,020$3.95638
Quote It
Technical Details
- Series:MDmesh™ V
- Package:Tube
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):650 V
- Current - Continuous Drain (Id) @ 25°C:35A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):10V
- Rds On (Max) @ Id, Vgs:78mOhm @ 17.5A, 10V
- Vgs(th) (Max) @ Id:5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:82 nC @ 10 V
- Vgs (Max):±25V
- Input Capacitance (Ciss) (Max) @ Vds:3470 pF @ 100 V
- FET Feature:-
- Power Dissipation (Max):210W (Tc)
- Operating Temperature:150°C (TJ)
- Mounting Type:Through Hole
- Supplier Device Package:TO-247
- Package / Case:TO-247-3
Related Products
MOSFET N-CH 80V 32A/298A 8HPSOF
- 1: $7.77000

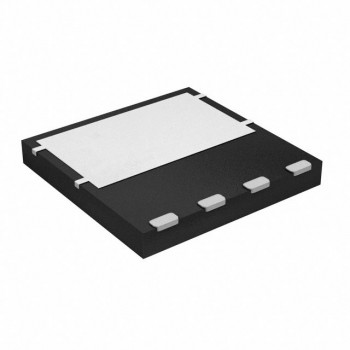

MOSFET N-CH 600V 36A PPAK 8 X 8
