FDV305N
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSMALL SIGNAL FIELD-EFFECT TRANSI
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet FDV305N Datasheet
-
ECAD Model
- Share
In Stock: 18,197
Can ship immediately
Pricing:
- 1$0.09
- 3,000$0.02336
- 6,000$0.02207
- 15,000$0.02012
- 30,000$0.01882
- 75,000$0.01687
Quote It
Technical Details
- Series:PowerTrench®
- Package:Bulk
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):20 V
- Current - Continuous Drain (Id) @ 25°C:900mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
- Rds On (Max) @ Id, Vgs:220mOhm @ 900mA, 4.5V
- Vgs(th) (Max) @ Id:1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:1.5 nC @ 4.5 V
- Vgs (Max):±12V
- Input Capacitance (Ciss) (Max) @ Vds:109 pF @ 10 V
- FET Feature:-
- Power Dissipation (Max):350mW (Ta)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:SOT-23
- Package / Case:TO-236-3, SC-59, SOT-23-3
Related Products

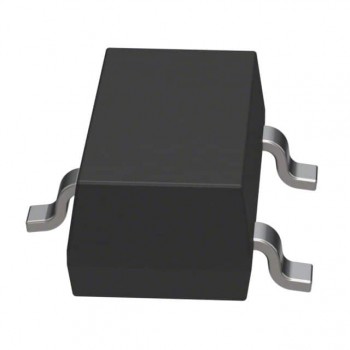

MOSFET P-CH 30V 4.2A SOT-23
- 1: $0.43000

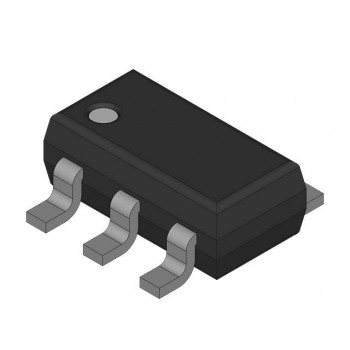

69A, 40V, 0.0085OHM, N-CHANNEL M
