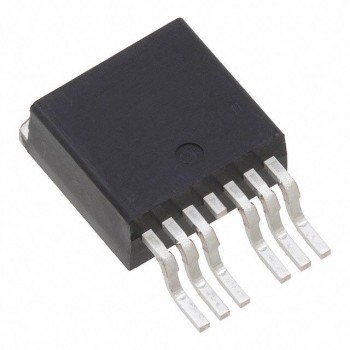

AUIRFS8409-7TRL

Technical Details

• Series:HEXFET®
• Package:Tape & Reel (TR)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):40 V
• Current - Continuous Drain (Id) @ 25°C:240A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:0.75mOhm @ 100A, 10V
• Vgs(th) (Max) @ Id:3.9V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:460 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:13975 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):375W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:D2PAK (7-Lead)
• Package / Case:TO-263-7, D²Pak (6 Leads + Tab)
