- Lifecycle status Active
- RoHS RoHS Compliant

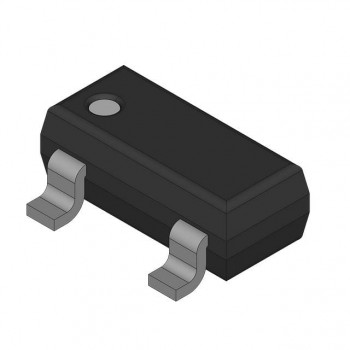

- DescriptionP-CH MOSFET 20V 2A SOT-23-3L
- CategoryTransistors - FETs, MOSFETs - Single
-
ECAD Model
- Share
In Stock: 130
Can ship immediately
Pricing:
- 1$0.29
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):20 V
- Current - Continuous Drain (Id) @ 25°C:2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
- Rds On (Max) @ Id, Vgs:94mOhm @ 1.5A, 4.5V
- Vgs(th) (Max) @ Id:1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:4.5 nC @ 4.5 V
- Vgs (Max):±10V
- Input Capacitance (Ciss) (Max) @ Vds:327 pF @ 10 V
- FET Feature:-
- Power Dissipation (Max):700mW (Ta)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:SOT-23
- Package / Case:TO-236-3, SC-59, SOT-23-3
